©PWDS 40

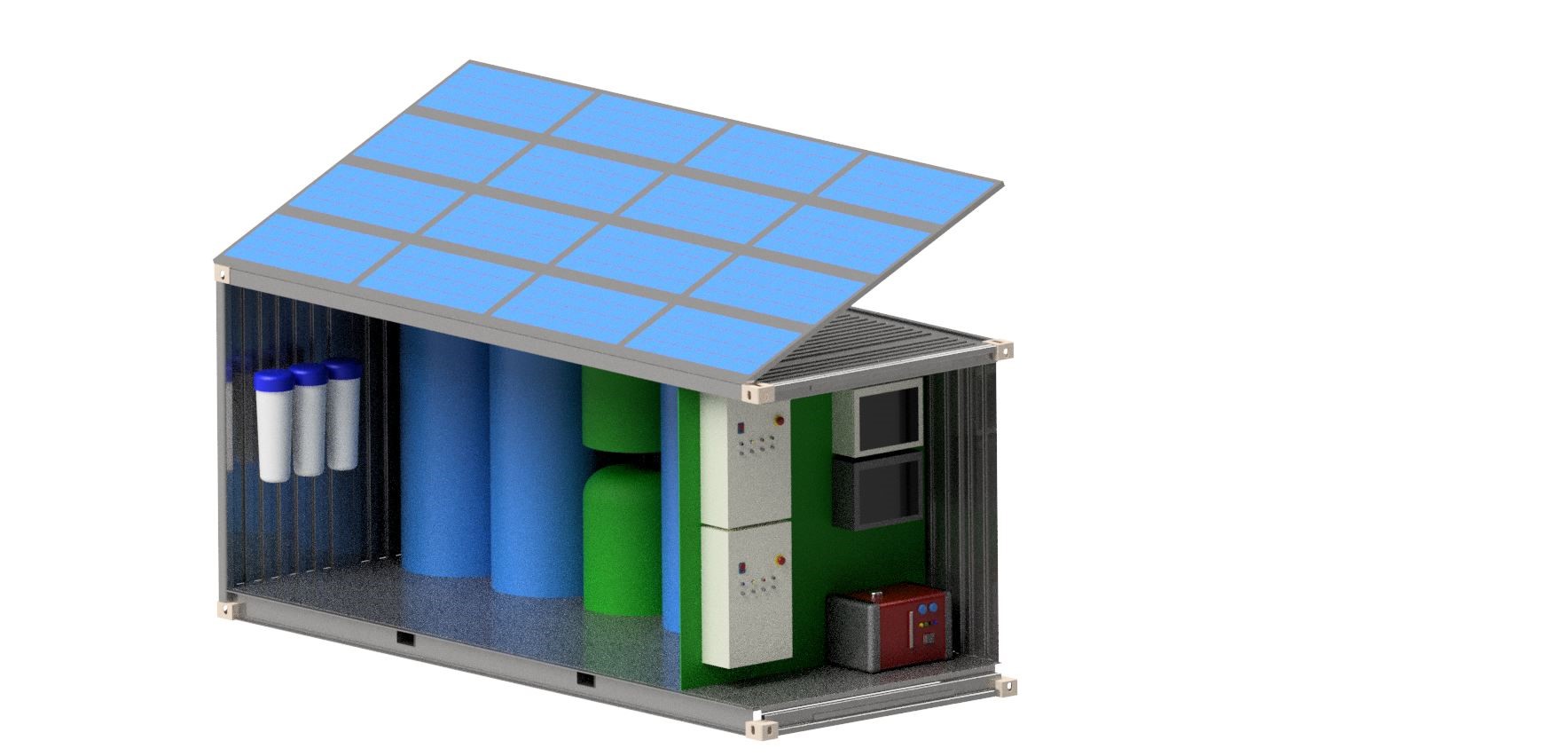

PWDS 40 – Mobile Potable Water and Disinfection System

The PWDS 40 is a compact, mobile water purification and disinfectant production unit, designed for reliable, high-performance operation in emergency scenarios, remote areas, or institutional settings (e.g., hospitals, military, disaster relief).

✅ Key Features

• Water output: Up to 10 m³/hour – enough to serve ~25,000 people/day (3L/person over 8 hours)

• Disinfectant output: Up to 40 L/h of activated neutral solution

• Fully automated system with PLC and remote control (WiFi, GSM, ADSL)

• No hazardous chemicals to transport or store

• Biodegradable, non-toxic solutions

• Easy to operate and maintain

• Zero water waste

• Fast contact time & high disinfection efficiency

• Modular design adaptable to different containers and client needs

⚙️ System Capabilities

• Potable water production using membrane-based technology and on-site generation of disinfectant

• In-line monitoring and safety protocols that block water output if quality parameters are not met

• Automatic alerts and restart systems

• Suitable for well or river water (with pre-filtration)

🌍 Applications

• Humanitarian and emergency response

• Military field operations

• Remote or undeveloped regions

• Ports, airports, healthcare facilities

🧪 Uses of Disinfectant Solutions

• Drinking water purification

• Surface/environmental sanitation (sprayable)

• Cold sterilization of medical instruments

• Process water treatment

• Equipment and vehicle disinfection

🛠️ Standard Equipment

• Containerized automatic unit

• Automatic dosing system

• Filtration system

• Storage tanks

• Power generator

• Remote monitoring system

🧩 Optional Accessories

• Solar panels + inverter + battery system

• Well water pumping system

• Custom filtration/sedimentation systems

• Additional tanks and pressure regulation systems
